Ultra-high magnification USB microscope NSH130CS-R
No : N/A
Quote : Contact
● It is smaller than the conventional lens and the resolution is improved!
● The range of magnification is larger than before.
● The objective lens can be replaced. (option)
● Ideal for observing highly reflective flat surfaces (polished metal, plating, silicon wafers, fiber end faces, etc.)! Coaxial lighting type
● Such as measurement and image consolidated soft rich software stocks
● Software development is also possible according to the customer’s request
● It is smaller than the conventional lens and the resolution is improved!
● The range of magnification is larger than before.
● The objective lens can be replaced. (option)
● Ideal for observing highly reflective flat surfaces (polished metal, plating, silicon wafers, fiber end faces, etc.)! Coaxial lighting type
● Such as measurement and image consolidated soft rich software stocks
● Software development is also possible according to the customer’s request
Overall specifications
| Total magnification | 200 times-1450 times *Magnification is calculated based on 17-inch monitor |
|---|---|
| Working distance | 35mm constant |
| Field of view | 1.7mmx1.36mm (at the time of 200 times) |
| 0.24mmx0.19mm (at 1450 times) | |
| Image sensor | 1/2” CMOS |
| Shutter method | Global shutter |
| Number of pixels | 1.3 million pixels |
| Pixel size | 4.8μm x4.8μm |
| Typical resolution (frame rate*) | 1280 x 1024 (90fps) *The actual frame rate varies depending on the performance of the computer and the setting environment. |
Operating environment
| Supported OS | Windows7, 8, 8.1, 10 |
|---|---|
| CPU | Intel core i3 or above |
| memory | 4GB or more |
All standard equipment
1.3MP USB3.0 camera
Coaxial lighting (1W)
Zoom lens
10x objective lens
Attached XY table specifications
, stage size
155 x 180 mm
, movement amount
75 x 55 mm
SH dedicated stand with coarse and fine movement
Protective cover
Viewer software

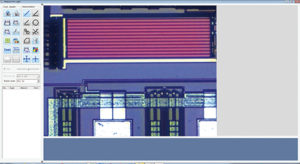

Introduction of standard equipment software
Functions of standard simple measurement software
- Save still image (JPEG/BMP format selectable)
- Distance measurement between 2 points
- Observation image pause function (freeze function)
- Saving/reading calibration data during measurement
- Fit-in function, digital zoom function
- Supported OS: Windows 8 or later
* Calibration glass scale is optional.
Main features
・USB3.0 connection
・Total magnification of 200 times to 1450 times
*You can change the objective lens and lower the magnification to use.
・Coaxial lighting with dimming function (1W type)
Smaller and lighter than conventional lenses, and higher resolution!
The new lens (left) and conventional lens (right)
Significantly smaller than conventional lenses!
Furthermore, the resolution is improved!
Significantly smaller than conventional lenses!
Furthermore, the resolution is improved!
Conventional lens
New lens
Illumination diaphragm function added!
Edges can be emphasized depending on the object.
<When opening the diaphragm>
<When the aperture is stopped>
Surprisingly long range over 1000 times
Long-range type
Working distance: 35mm
Working distance: 35mm
Observation image <Fiber end face>
