Further evolved high-definition microscope
●Magnification can be seen at a glance
●Measure immediately when changing magnification
(calculated value for 21.5-inch monitor conversion)
The greatest feature of this model
after changing the magnification
●Personal error is greatly reduced by quick measurement.
Since the lens and camera are integrated, there is no need for calibration.
Automatically detect edges. Measurement error is greatly reduced.

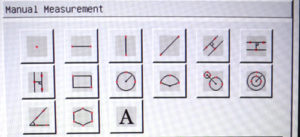

Polygon circumference, area
circle radius, circumference, area
arc angle, radius
distance between two circles

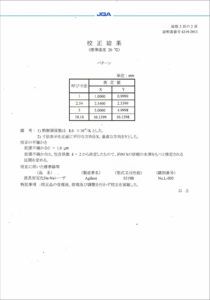

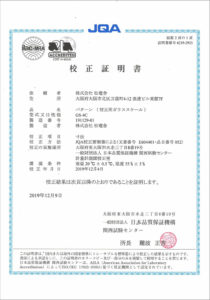

We use a glass scale with a calibration certificate inside Matsudensha to perform calibration, shipment inspection, and accuracy adjustment one by one.
Therefore, when it arrives, you can measure it immediately by connecting it to the monitor.
|Total magnification||20 times-165 times |
*Magnification is calculated based on 21.5 inch monitor
|Field of view||22mmx12.4mm (at the time of 20 times)|
|2.7mmx1.5mm (at 165 times)|
|Working distance||75 mm|
|Image sensor||1/2.8” CMOS|
|Number of pixels||2 million pixels|
|resolution||1920 x 1080 (Full HD)|
2. 21.5 inches
If a monitor other than the applicable size is used, the total magnification will not be displayed.
*If you are using a monitor of a size other than the above, select the closest monitor size on the software.
In that case, the total magnification displayed on the monitor is a guide.
・Camera with integrated lens
81 LED ring lighting
