High-end movable endoscope

●φ6.0mm 4-way movable cable
●High quality (Wide-SVGA) type

Industrial endoscope body specifications

monitor	7 inch LCD monitor with touch panel
Waterproof standard	Dustproof and waterproof: IP57
Display resolution	1024 x 600 pixels (Wide-SVGA)
External output	HDMI output (HDMI 1.4), USB output (USB TYPE-C), Wifi (IEEE802.11B/G/N)
language	Japanese, English, German, Spanish, French, Italian, Chinese and 28 other languages
Power supply	AC adapter/rechargeable lithium battery
Drive time	About 5 hours
Still image recording format	Jpeg (2560×1400, 1280×720)
Video recording format	Mov/H.264 (1920×1080, frame rate 30fps) *including audio
Operating environment temperature	0 to 40°C (when operating on battery, non-condensing) 0 to 35°C (when driving AC adapter, non-condensing)
Size/weight	Monitor unit: 240(W)x154(H)x47(D)mm / 1327g

Product Specifications

Cable type	φ6.0 mm, movable tip in 4 directions
cable length	2m	3m
cable length	MIGS20-602A4	MIGS20-603A4
price	1,100,000 yen (excluding tax)	1,200,000 yen (excluding tax)
Cable features	Movable in all directions/Dustproof/Waterproof IP67 equivalent*/Oil resistant (engine oil, automobile brake oil, unleaded gasoline, diesel oil, transmission oil, kerosene, cleaning liquid (glass), edible vegetable oil, aviation fuel oil, hydraulic oil, turbine oil)・Antifreeze/Ethanol) / Viewing angle 90° / Focal length 10mm ~ 100mm / CMOS sensor
illumination	2 white LEDs
accessories	Endoscope body, cable, battery, holding tube, SDHC card, side endoscope, USB cable, maintenance kit, AV cable, AC adapter, shoulder strap, hand strap, carrying case

IP67 is a structure that does not submerge inside even if immersed in water with a depth of 1 m for 30 minutes.

Main features

Uses a joystick for operation

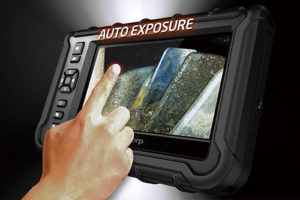

Automatic exposure function

Probe temperature warning

HD video, full HD video playback (1920 × 1080) /
high-resolution still image shooting (2560 × 1440)
